Product Code: CEI-PRD / PRD-GI

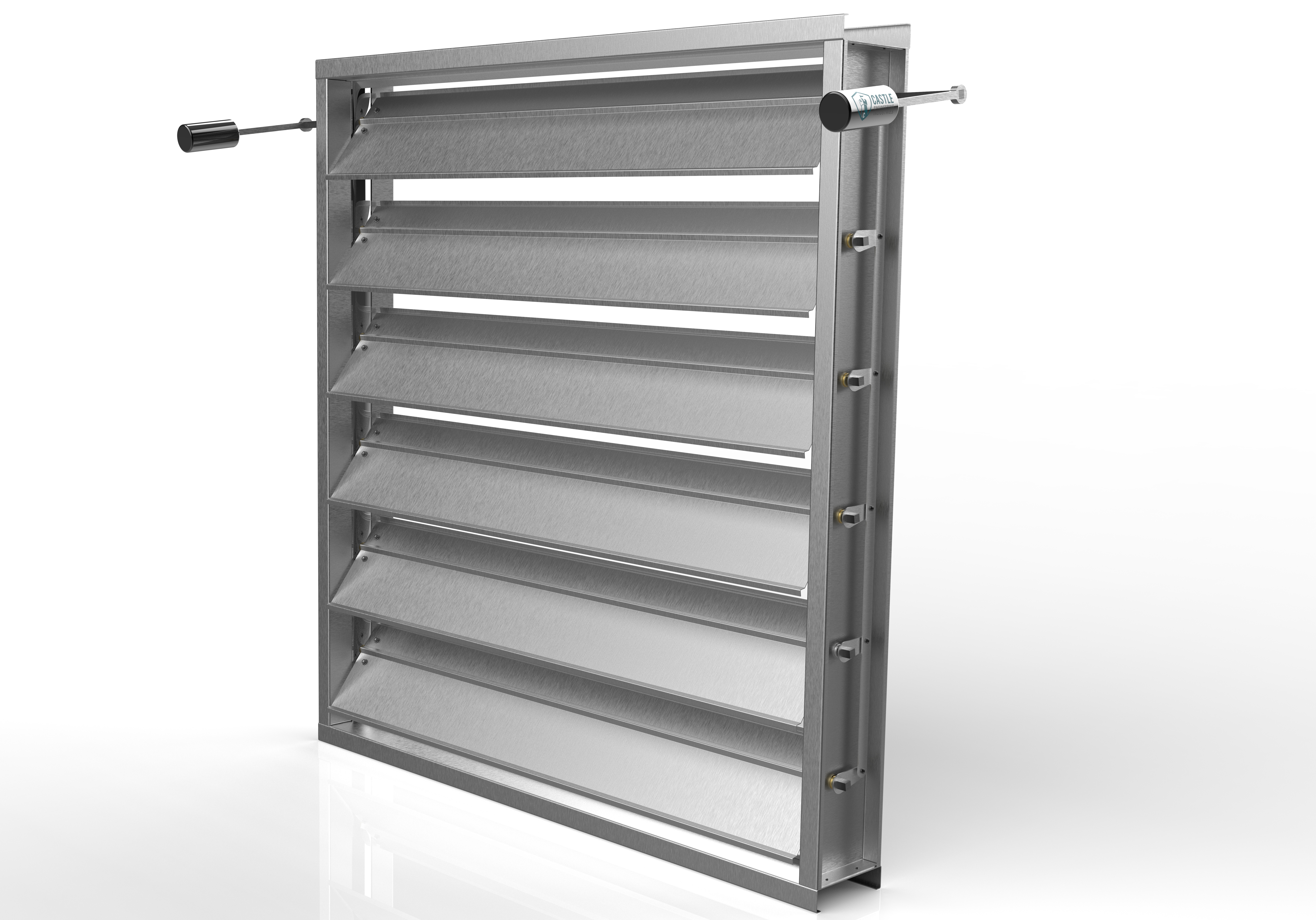

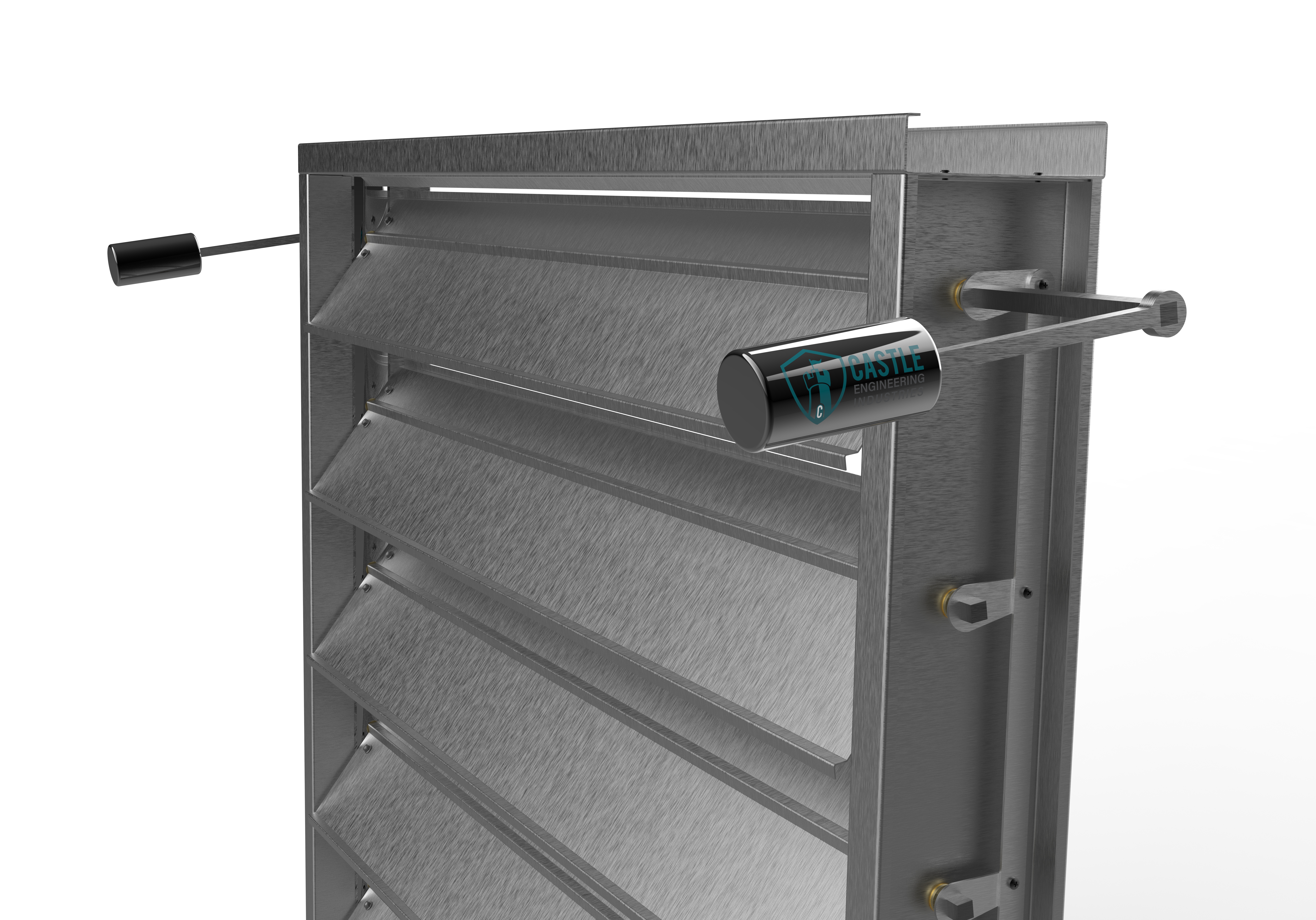

Pressure Relief Dampers
صمامات تخفيف الضغط
Self-acting pressure relief dampers maintaining system balance automatically. Open against set spring pressure and close when pressure drops. Essential for stairwell pressurization and clean room applications.
Frame Material
Product Description
Castle Pressure Relief Dampers automatically relieve excess pressure within duct systems to maintain optimal operating pressure and prevent damage to HVAC equipment. They open when internal duct pressure exceeds a calibrated threshold, releasing air to reduce pressure, then close automatically when pressure normalizes. Critical for systems with VAV boxes and variable speed drives.
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frame Material | Galvanized steel 1.2mm | — |
| Blade Material | Galvanized steel / Aluminium — counterweighted | — |
| Operation | Pressure-actuated — opens at calibrated set point | — |
| Set Point Range | 25 Pa to 500 Pa (adjustable) | Pa |
| Blade Configuration | Parallel blade — gravity-assisted | — |
| Frame Depth | 125mm / 200mm | mm |
| Standard Sizes | 300×300 to 1200×600mm | mm |
| Seal Type | Neoprene blade edge gasket | — |
| Mounting | Wall / Ceiling / Duct penetration | — |
| Finish | Galvanized mill / Powder coated | — |
| Compliance | SMACNA / ASHRAE / NFPA | — |
Fields of Application
Tests & Certificates
ISO Certification
International Quality Certifications
International Standards
SMACNA · DW144 · IGC · UL
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Air Tests
Air velocity and distribution testing.
