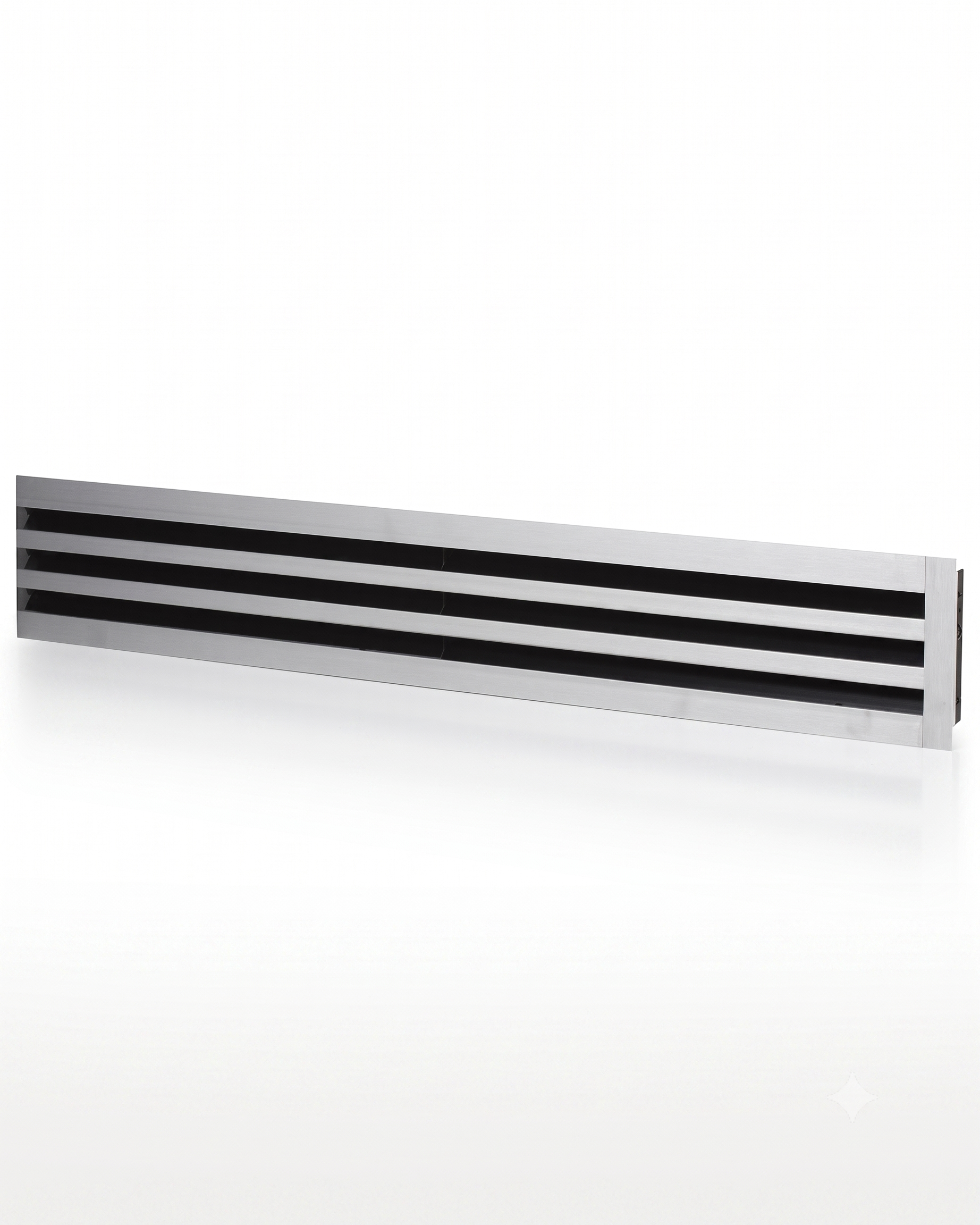

Product Code: SLD1 / SLD2

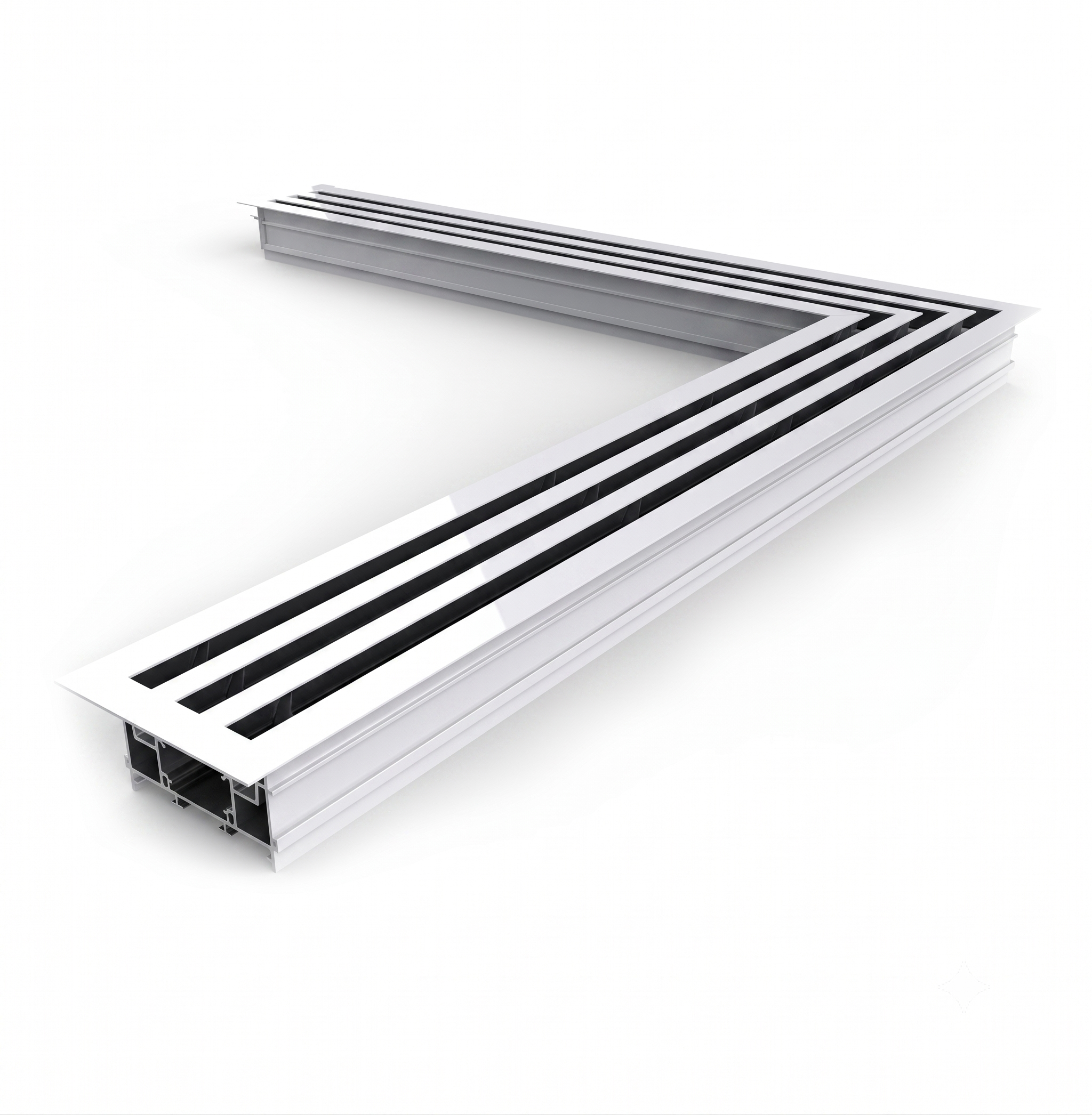

Linear Slot Diffuser
موزع فتحة خطية
SD Series linear slot diffusers — 3/4" and 1" slot widths, single to 6-slot configurations, with air deflectors for horizontal or vertical supply and return air applications.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description
The SD series slot diffusers are engineered to uphold superior air diffusion in occupied spaces, ensuring optimal air quality. Versatile in function, they can be employed for supply, return, and exhaust air applications. In supply air systems, the air pattern can be adjusted by rotating the air deflectors in either direction.
Adjustable Air Deflectors
Two air deflectors per slot set horizontal or vertical diffusion pattern — rotatable in either direction for supply air applications.
Hit-and-Miss Damper
Volume control via hit-and-miss damper on top side — two aluminium profiles with evenly spaced rectangular openings; top profile adjustable.
Equalizing Grid
Single extruded aluminium profile with equally spaced openings affixed to top side — ensures even air distribution across discharge face.
Slot Width Options
3/4" (20mm) or 1" (25mm) slot widths — 1 to 6 slot configurations available per model.
Plenum Box Options

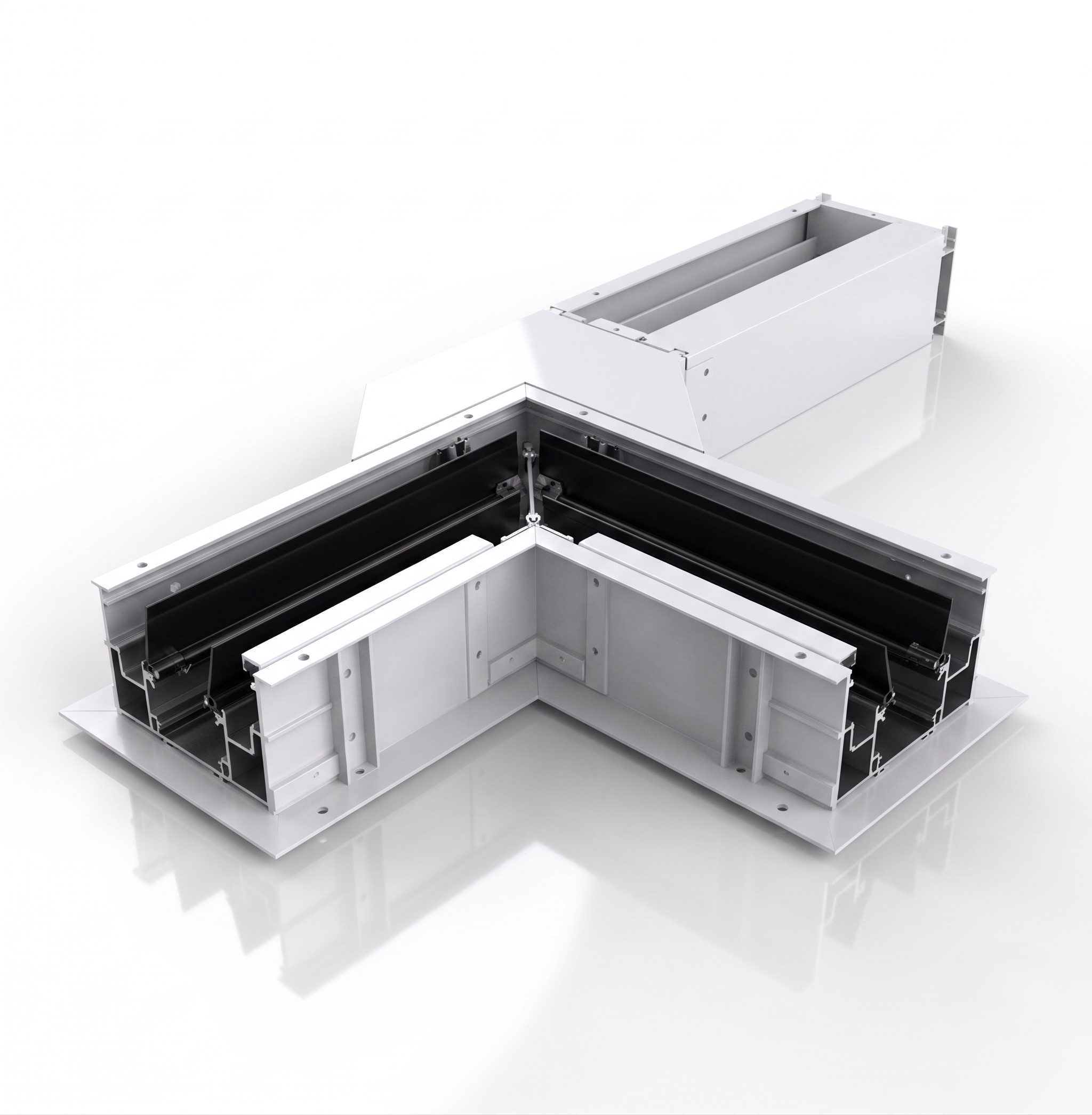

K-110 plenum with built-in balancing damper (side or top entry) or VK-140 plenum without balancing damper — galvanized steel Ga.24 with 25mm acoustic lining.
Mitered Corners

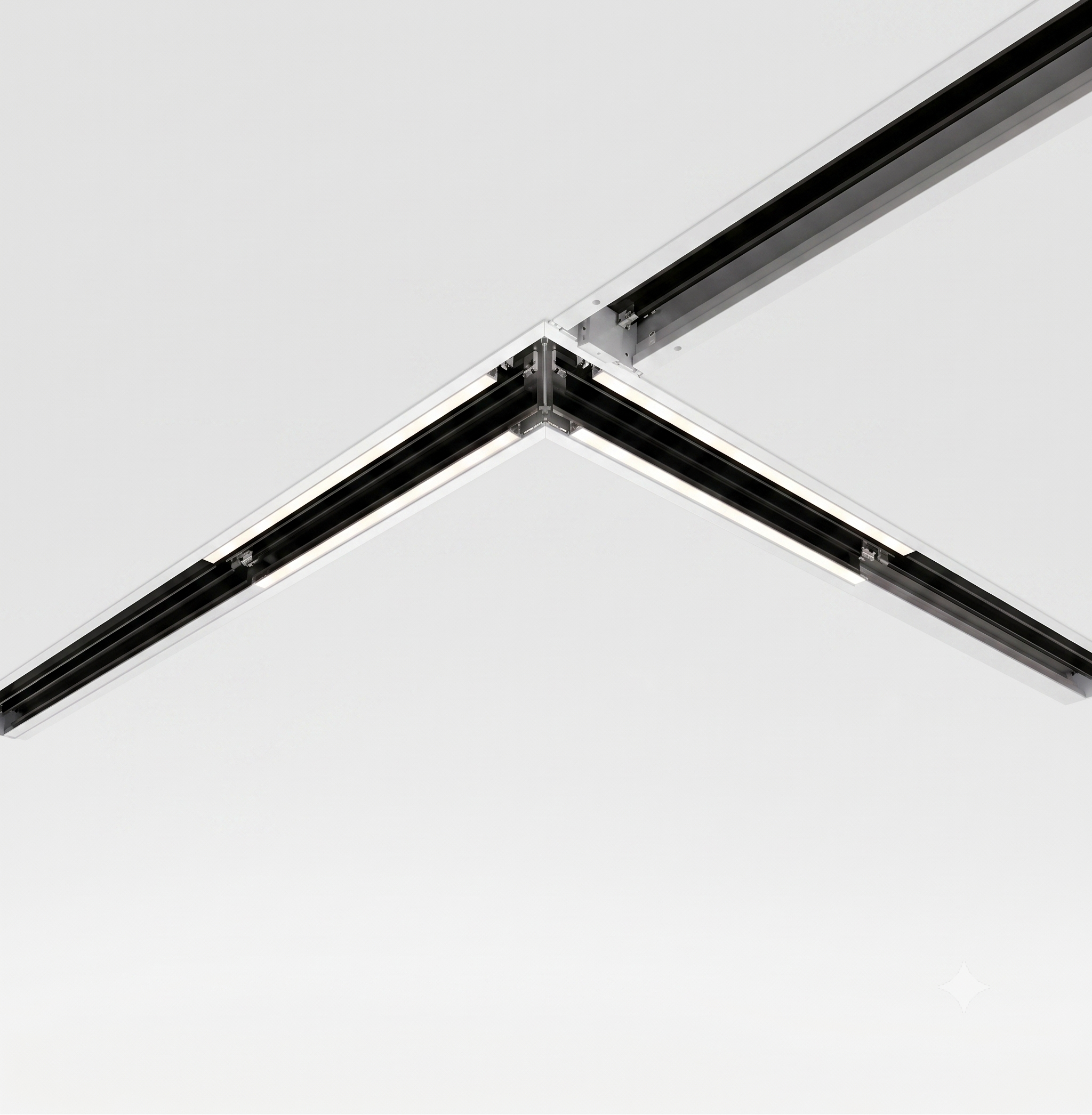

Mitered corner sections available for seamless continuous slot diffuser installation around ceiling edges.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Material | Extruded aluminium alloy profiles | — |
| Slot Width Options | 3/4" (20mm) · 1" (25mm) | — |
| Number of Slots | 1 to 6 slots per section | — |
| Max Section Length | 3000 mm | mm |
| Model SLD1 — 1" Slot | A: 55–280mm · B: 45–270mm · C: 81–306mm (1–6 slots) | mm |
| Model SLD2 — 1" Slot | A: 55–270mm · B: 45–260mm · C: 94–309mm (1–6 slots) | mm |
| CFM Range per Foot | 25–250 CFM/ft depending on slot count | CFM/ft |
| Plenum Box Type | K-110 (with damper) · VK-140 (without damper) | — |
| Plenum Lining | 25mm acoustic, 48 kg/m³, black cloth facing | — |
| Standard Finish | Polyester powder coat white RAL 9010 | — |
| Damper & Grid Finish | Black colour | — |
| Country of Origin | Egypt | — |
