Front View
Enlarge
Product Code: CEI-ID / ID-GI / ID-AL

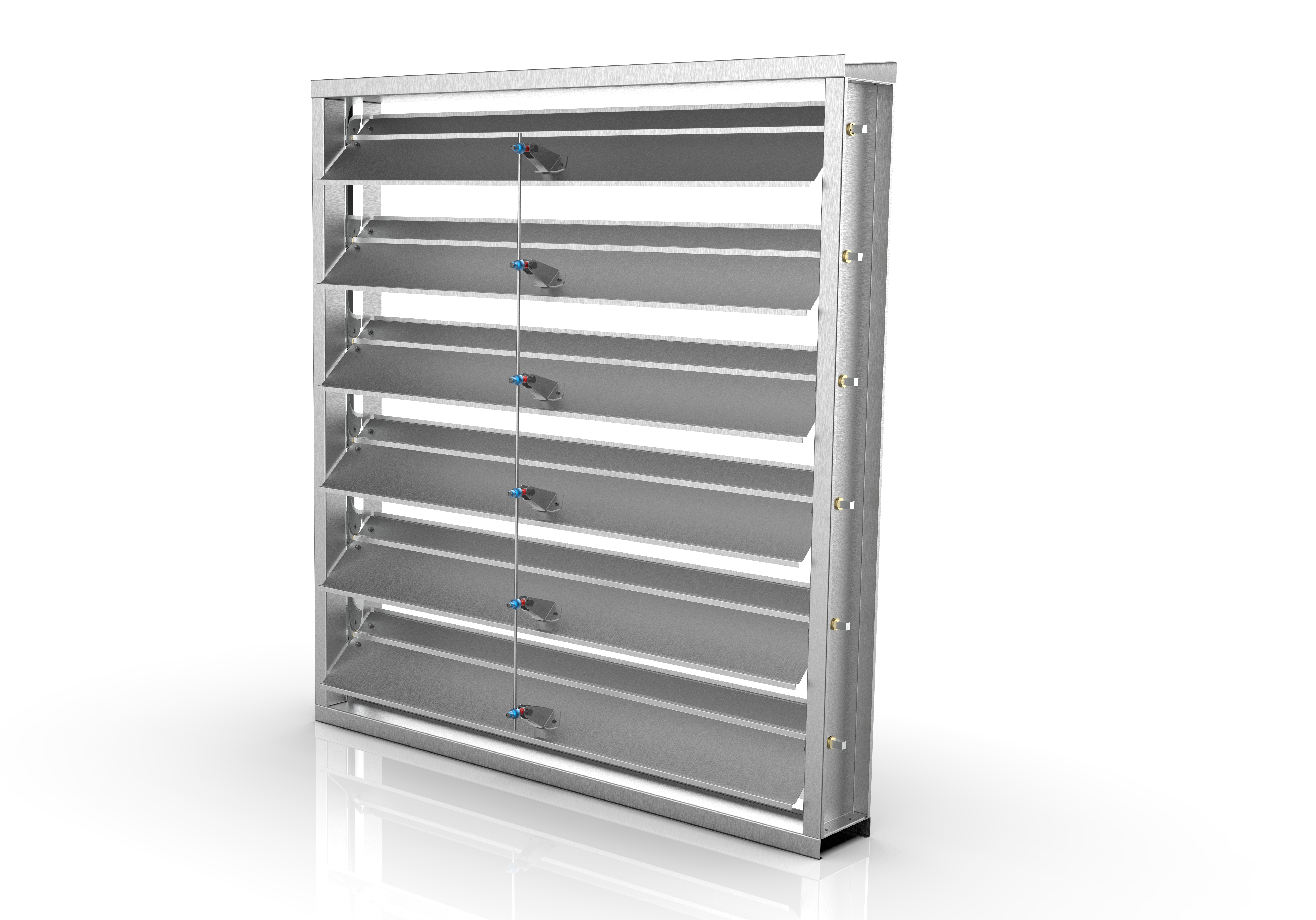

Inertia Dampers
صمامات عزل الاهتزاز
Pressure relief, counter-balance and back-draft configurations for different system requirements. Gravity-operated with no power requirement. Available as CID-PR, CID-CB and CID-BD models.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description
Castle Inertia Dampers (Counterbalancing Dampers) automatically balance airflow in different sections of the ductwork using counterweights or springs. They modulate blade position based on air pressure, maintaining consistent airflow distribution without manual adjustment. Essential for systems with variable fan speeds or multiple branch takeoffs.
Self-Regulating
Counterweight mechanism automatically adjusts blade position — no manual intervention or power required.
Fail-Safe
Gravity closes blades when airflow stops — prevents reverse airflow and backdraft.
Low Maintenance
No motors, actuators or electrical connections — purely mechanical operation.
Adjustable Sensitivity
Counterweight position adjustable to fine-tune opening pressure threshold.
ISO 9001:2015 Certified
Quality management system certified by IGC, covering all stages from raw material to final delivery.
SMACNA & DW144 Compliant
Manufactured to the latest edition of SMACNA HVAC Duct Construction Standards and DW144.
Custom Sizes Available
Non-standard dimensions manufactured to project specifications with competitive lead times.
Approved by Leading Consultants
Accepted by Dar Al-Handasa, ECG, SYSTRA, Khatib & Alami and 25+ major engineering consultants.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frame Material | Galvanized steel 1.2mm / Aluminium option | — |
| Blade Material | Aluminium sheet — single skin or GI option | — |

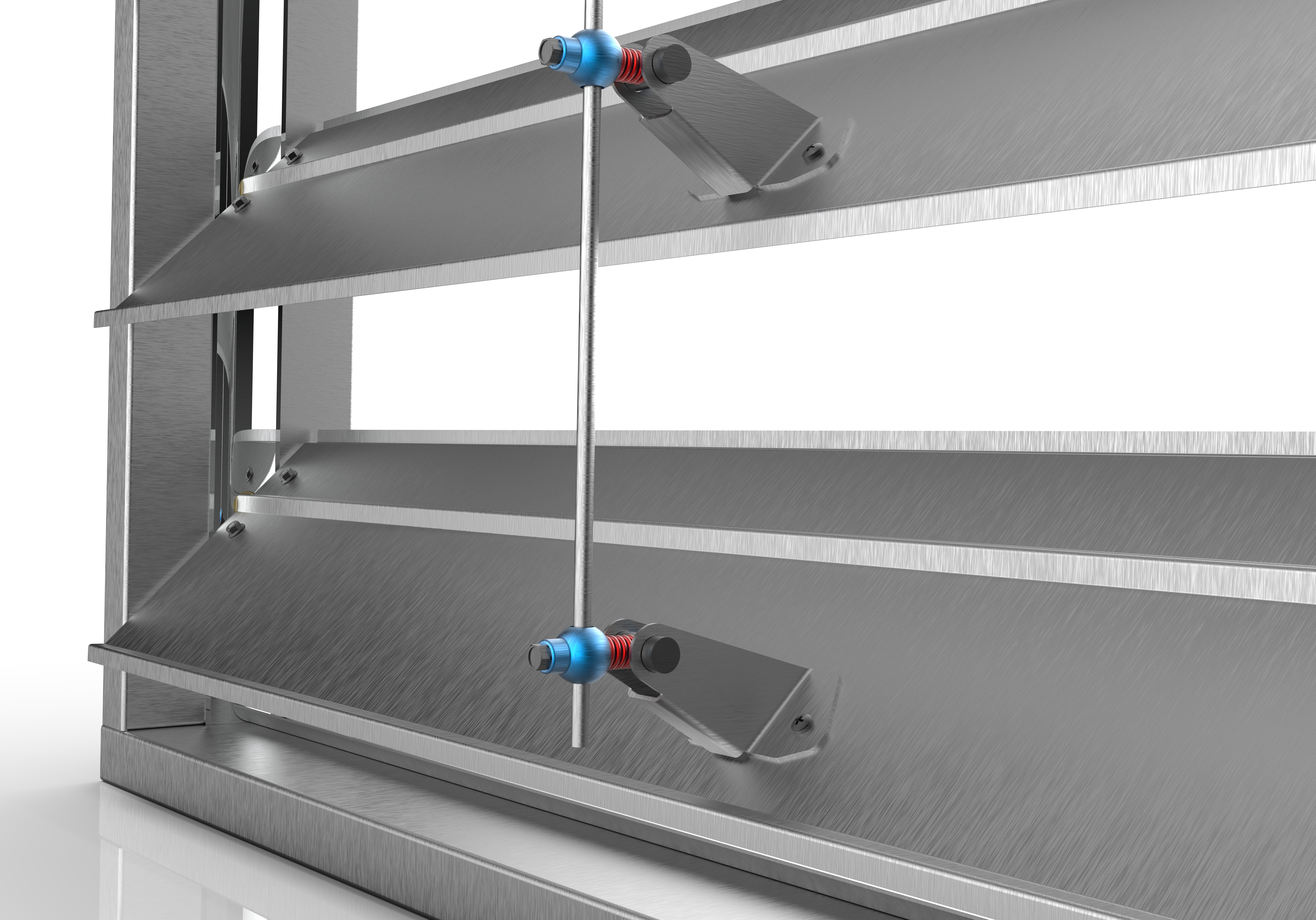

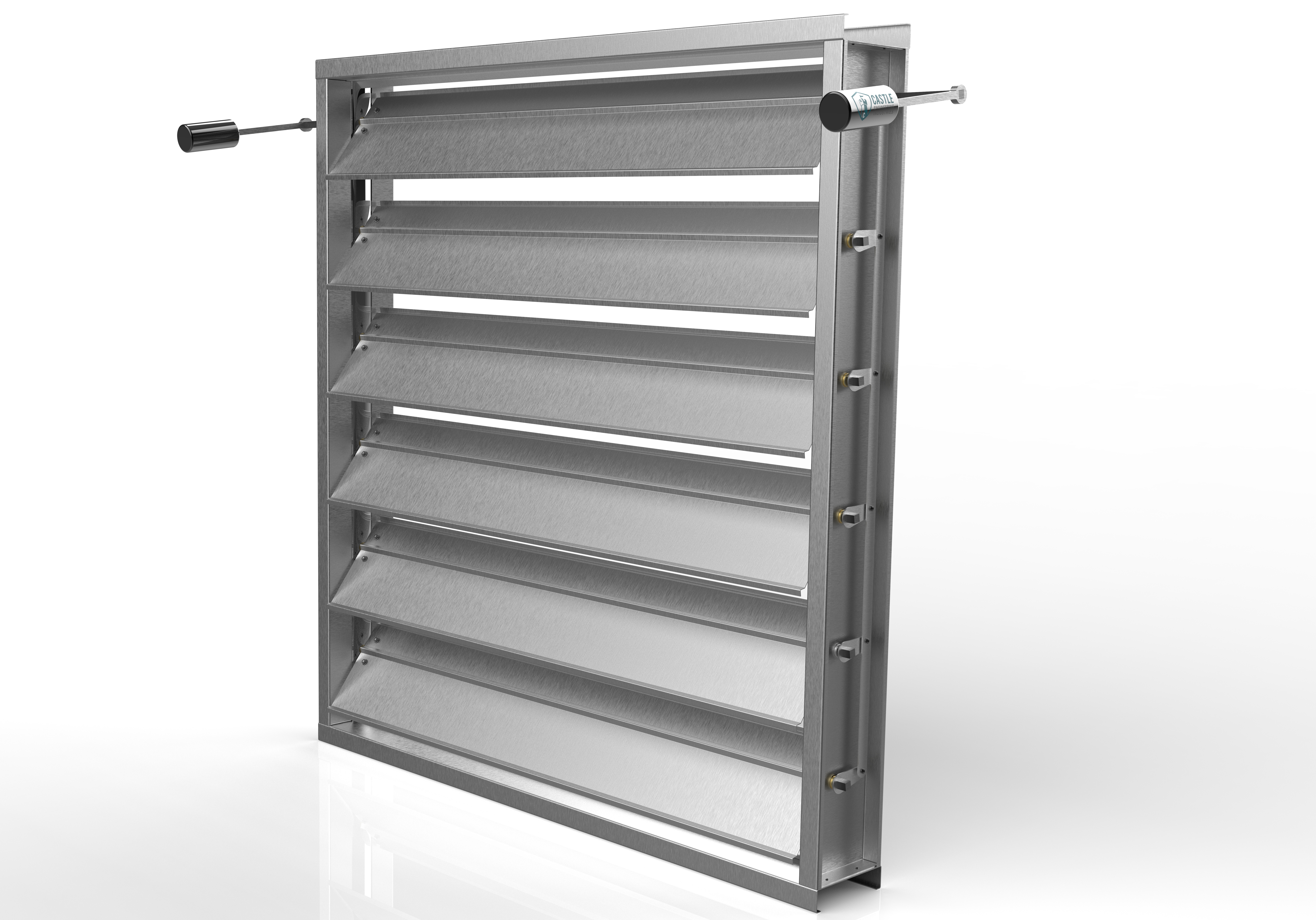

| Counterbalance | Adjustable counterweights on external arm | — |
| Operation | Gravity-operated — opens with airflow, closes when fan stops | — |
| Blade Type | Single blade / Multi-blade parallel | — |
| Frame Depth | 100mm / 125mm | mm |
| Standard Sizes | 150×150 to 1200×1200mm | mm |
| Mounting | Wall mounted / Duct mounted — flush or exposed | — |
| Material Options | Galvanized Steel (GI) / Stainless Steel (SS) / Aluminium (AL) | — |
| Finish | Mill finish / Powder coated per RAL code | — |
| Compliance | SMACNA / ASHRAE | — |
Applications
Fields of Application
Kitchen exhaust systems
Ventilation shaft outlets
Generator room exhaust
Multi-branch duct balancing
Industrial exhaust systems
Parking garage ventilation
Quality Assurance
Tests & Certificates
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
