Product Code: CEI-GCS / GCS-SS / GCS-GI
Garbage Chute System
مزلقة القمامة
Multi-floor garbage chute systems for residential towers and commercial buildings. Galvanized steel shaft with floor-level intake doors and compactor connection at base. Includes fire suppression connection points.
Frame Material
Product Description

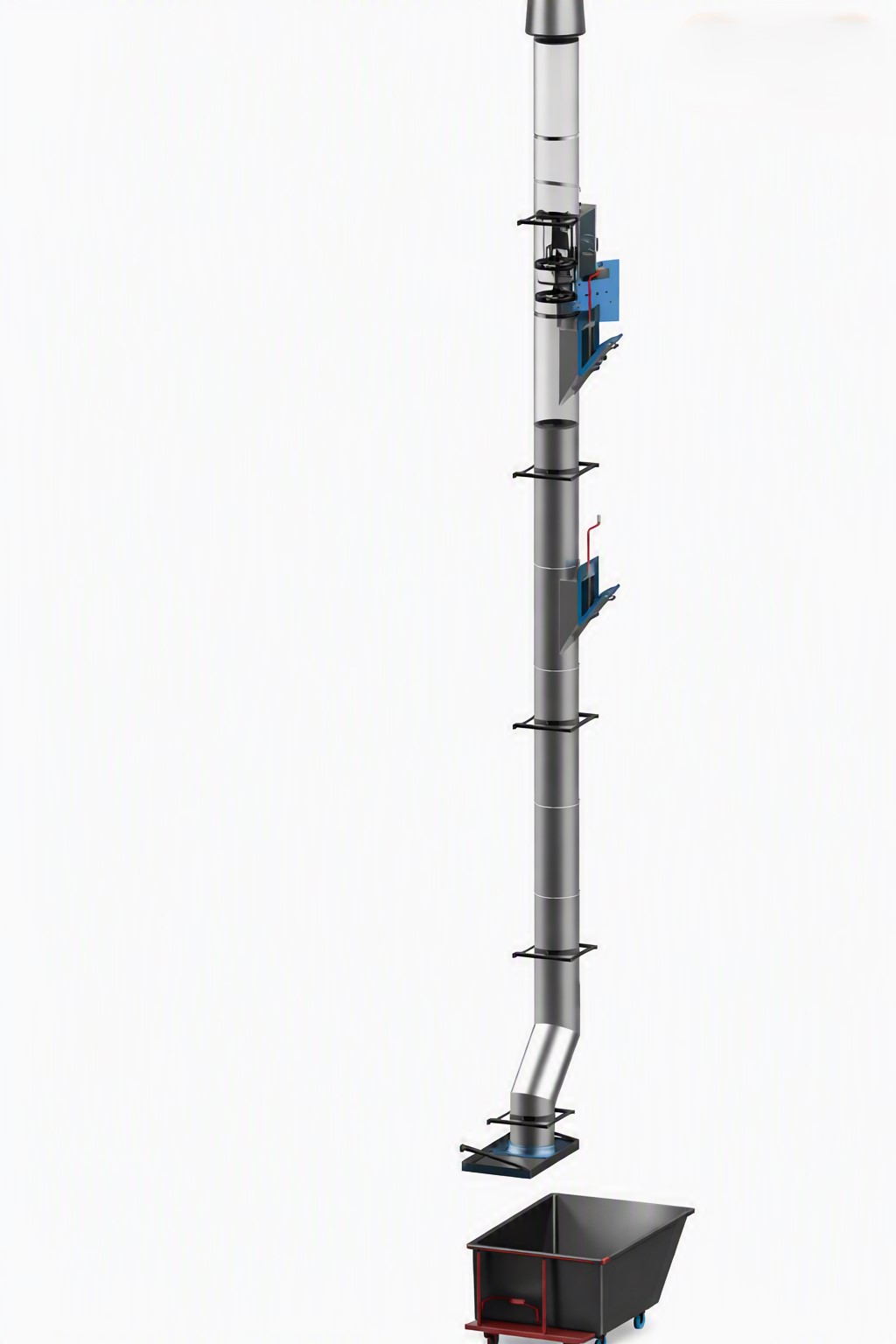

Castle Garbage Chute Systems are multi-floor waste disposal systems for residential towers, hotels and commercial buildings. Stainless steel or galvanized steel chute pipes with fire-rated intake doors at each floor, spring-loaded self-closing mechanism and neoprene gasket seal. Bottom discharge into compactor or dumpster. The system includes sanitizing spray nozzles and ventilation fan for odour control.
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Chute Pipe Material | Stainless steel 304 (1.5mm) / Galvanized steel (1.2mm) | mm |
| Pipe Diameter | Ø450 / Ø500 / Ø600mm | mm |
| Pipe Sections | 1000mm / 1500mm / custom floor height | mm |
| Intake Doors | Fire-rated — 1 hour / Spring self-closing | — |
| Door Material | Stainless steel 304 — with neoprene gasket | — |
| Door Sizes | 400×400mm / 450×450mm / 500×500mm | mm |
| Ventilation | Roof-mounted exhaust fan — odour control | — |
| Sanitizing | Spray nozzle system at top — automated wash-down | — |
| Fire Features | Fusible link sprinkler at top / Fire-rated doors | — |

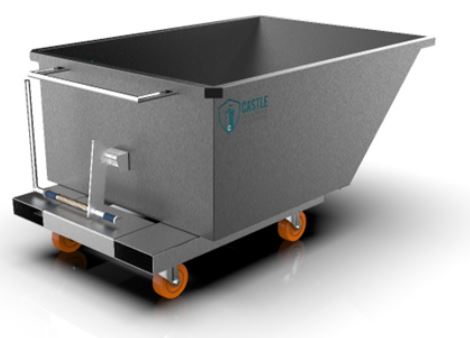

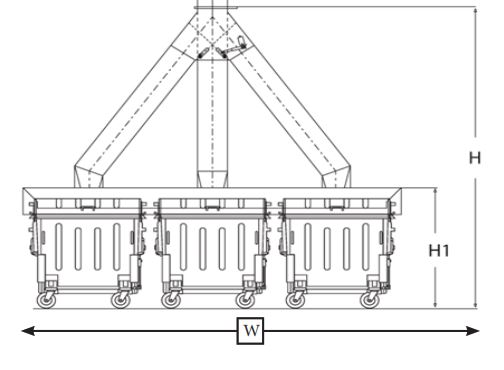

| Bottom Discharge | Into compactor / Dumpster / Collection room | — |
| Building Height | Unlimited floors — sectional pipe assembly | — |
| Compliance | NFPA 82 / Egyptian building code / BS standards | — |
Fields of Application
Tests & Certificates
ISO Certification
International Quality Certifications
International Standards
SMACNA · DW144 · IGC · UL
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Air Tests
Air velocity and distribution testing.
