Product Code: SDV / RDV
Disc Valve
صمام قرصي

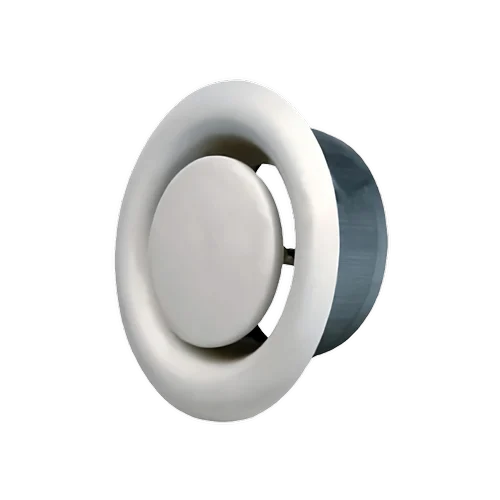

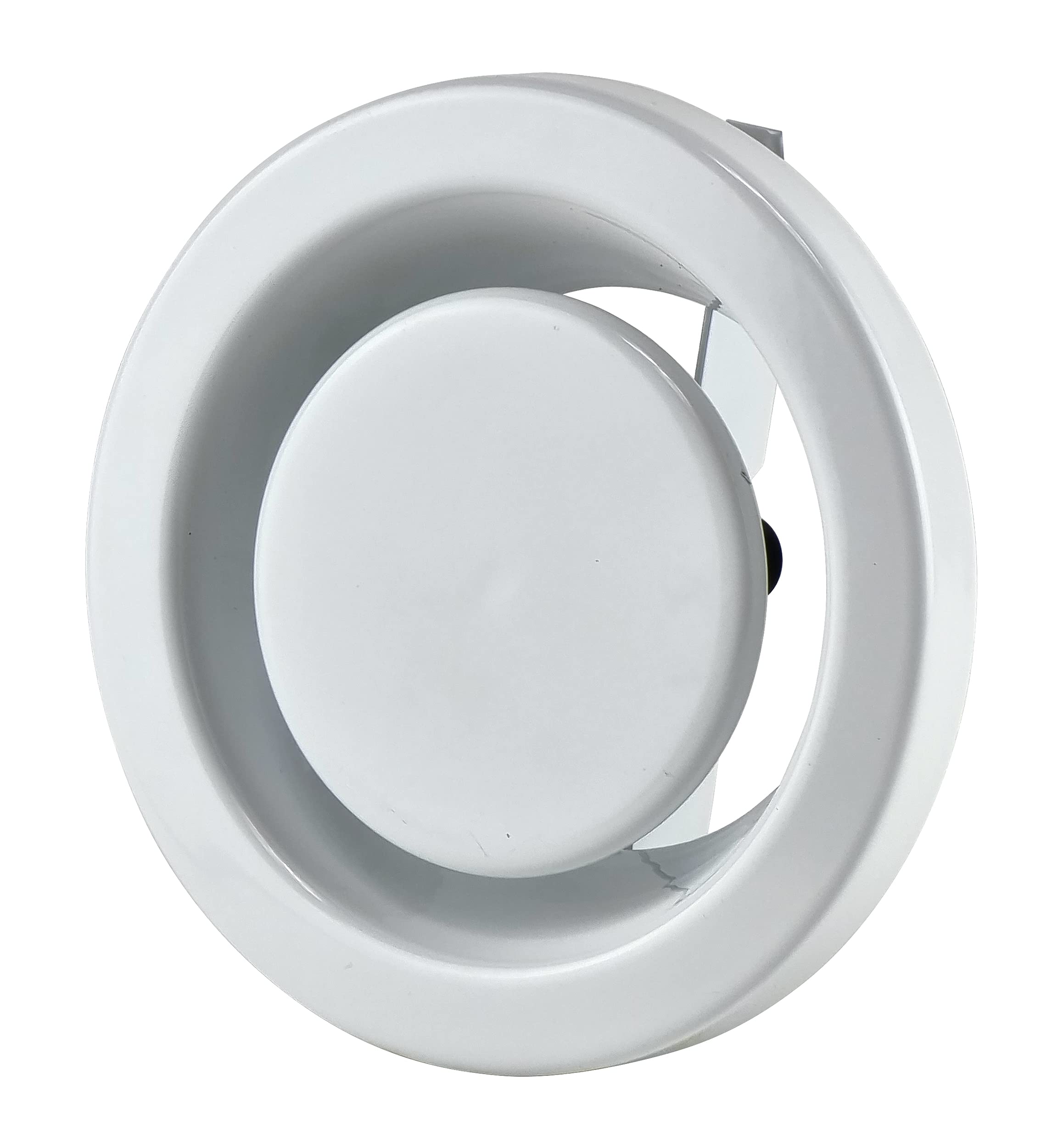

SDV/RDV Disc Valve Series — compact steel disc valves for supply and exhaust air in bathrooms, toilets, wash rooms and small rooms. Sizes 100, 150 and 200mm.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description
Disc / Air Valves are a pleasing terminal device providing good appearance with very accurate control over supply or exhaust air volumes. The Disc Valves have been designed to provide a compact, clean and attractive means to ventilate bathrooms, toilets, wash rooms, kitchens and other small rooms.
Accurate Air Volume Control
Inner disc connected to outer frame by threaded rod — rotate inwards or outwards on spindle for precise supply/exhaust volume adjustment.
Snap-in Fixing Collar
Galvanized steel mounting ring supplied as standard — valve body twists into collar until perfect seal achieved using provided sponge gasket.
Supply & Return Models
SDV (Supply Disc Valve) sizes 100, 150, 200mm. RDV (Return Disc Valve) sizes 100, 150, 200mm.
Compact Design
Compact, clean and attractive terminal device — ideal where space is limited and aesthetics matter, such as domestic and light commercial settings.
Sponge Gasket Seal
Sponge gasket on back of outer ring provided as standard — ensures airtight seal against ceiling or wall surface.
Durable Construction
Powder coated steel construction in white RAL 9010 as standard. Optional RAL colours available at extra charge.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frame & Disc Material | Steel sheet with white powder coat RAL 9010 | — |
| Fixing Collar Material | Galvanized steel sheet (supplied as standard) | — |
| Models — Supply | SDV100 · SDV150 · SDV200 | mm diameter |
| Models — Return | RDV100 · RDV150 · RDV200 | mm diameter |
| Sizes Available | 4" (100mm) · 6" (150mm) · 8" (200mm) | — |
| Adjustment | Threaded rod — rotate inner disc on spindle | — |
| Gasket | Sponge gasket on back of outer ring (standard) | — |
| Standard Finish | Powder coat white RAL 9010 | — |
| Optional Finish | Any RAL colour (extra charge) | — |
| Country of Origin | Egypt | — |
Applications
Fields of Application
Commercial & Industrial HVAC Projects
Quality Assurance
Tests & Certificates
ISO Certification
International Quality Certifications
ISO 9001:2015
ISO 14001:2015
OHSAS 18001
International Standards
SMACNA · DW144 · IGC · UL
SMACNA
DW144
IGC
UL
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
