Product Code: CEI-CFD / CFD-1.5 / CFD-3.0
Curtain Fire Dampers
صمامات حريق ستارة
Spring-activated curtain dampers closing automatically on fusible link release to contain fire spread through ductwork. UL listed and BS476 tested. Integral or remote fusible link options.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description

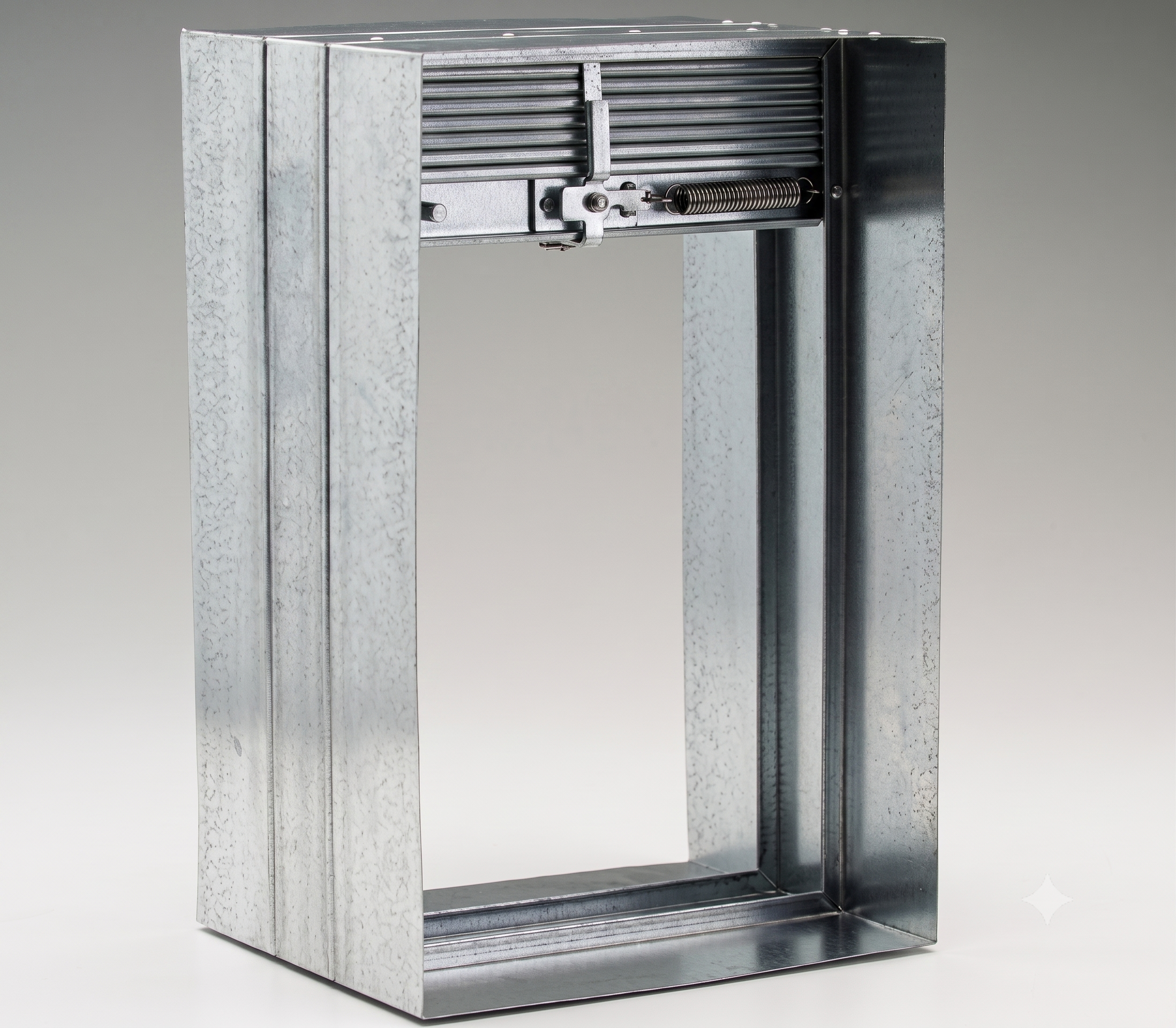

Castle Curtain Fire Dampers are passive fire protection devices installed in duct penetrations through fire-rated walls and floors. The curtain-style blade drops by gravity when the fusible link melts at 72°C, sealing the duct opening and preventing fire spread through the HVAC system. Available in 1.5-hour and 3-hour fire ratings per UL 555 and BS EN 1366-2.
UL 555 Rated
Tested and certified per UL 555 for 1.5-hour and 3-hour fire ratings — meets international building codes.
Dynamic Rated
Closes against airflow up to 2000 fpm — no need to shut down HVAC before closure.
Gravity Fail-Safe
Fusible link release triggers gravity drop — no power, motors or controls required for closure.
Manual Reset
Field-accessible reset mechanism — no replacement parts needed after testing or activation.
ISO 9001:2015 Certified
Quality management system certified by IGC, covering all stages from raw material to final delivery.
SMACNA & DW144 Compliant
Manufactured to the latest edition of SMACNA HVAC Duct Construction Standards and DW144.
Custom Sizes Available
Non-standard dimensions manufactured to project specifications with competitive lead times.
Approved by Leading Consultants
Accepted by Dar Al-Handasa, ECG, SYSTRA, Khatib & Alami and 25+ major engineering consultants.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Casing Material | Galvanized steel 1.5mm minimum | — |
| Blade Material | Galvanized steel — single curtain type | — |
| Fusible Link | 72°C (standard) / 100°C (optional) | °C |
| Fire Rating | 1.5 hour / 3.0 hour (per UL 555) | hours |
| Operation | Gravity drop — fusible link release | — |
| Max Velocity | 2000 fpm (10 m/s) dynamic rated | m/s |
| Rectangular Sizes | 150×150 to 1500×1500mm | mm |
| Round Sizes | Ø100 to Ø630mm | mm |

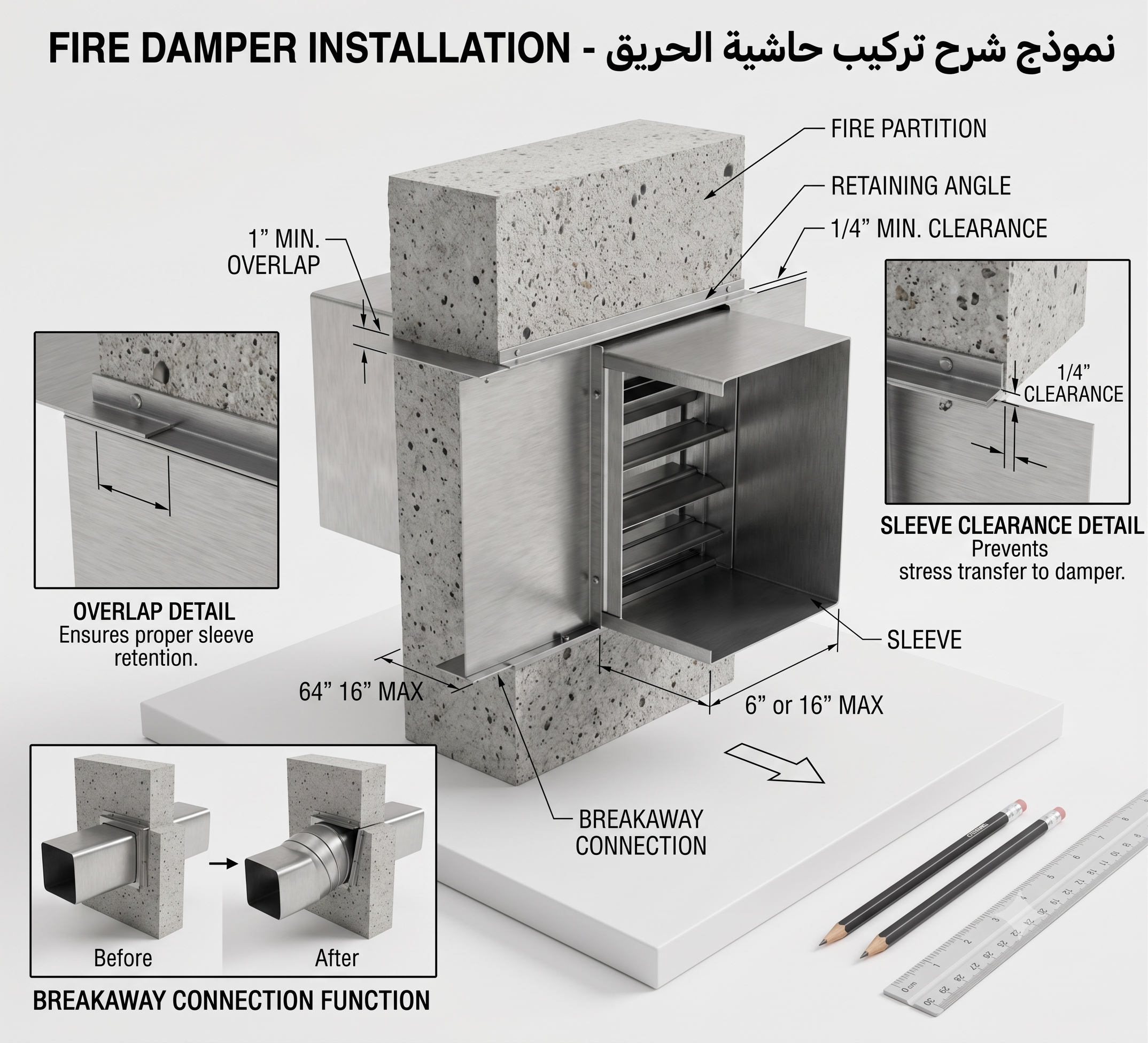

| Sleeve | Galvanized steel breakaway duct connection | — |
| Installation | Vertical or horizontal — wall or floor | — |
| Compliance | UL 555 / BS EN 1366-2 / BS EN 13501-3 / NFPA 90A | — |
| Reset | Manual reset — field accessible | — |
Applications
Fields of Application
Fire-rated wall penetrations
Fire-rated floor penetrations
AHU room barriers
Corridor fire compartments
Stairwell shaft barriers
Hospital fire compartmentation
Quality Assurance
Tests & Certificates
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
