Front View
Enlarge
Product Code: CEI-CTA / CTA-R

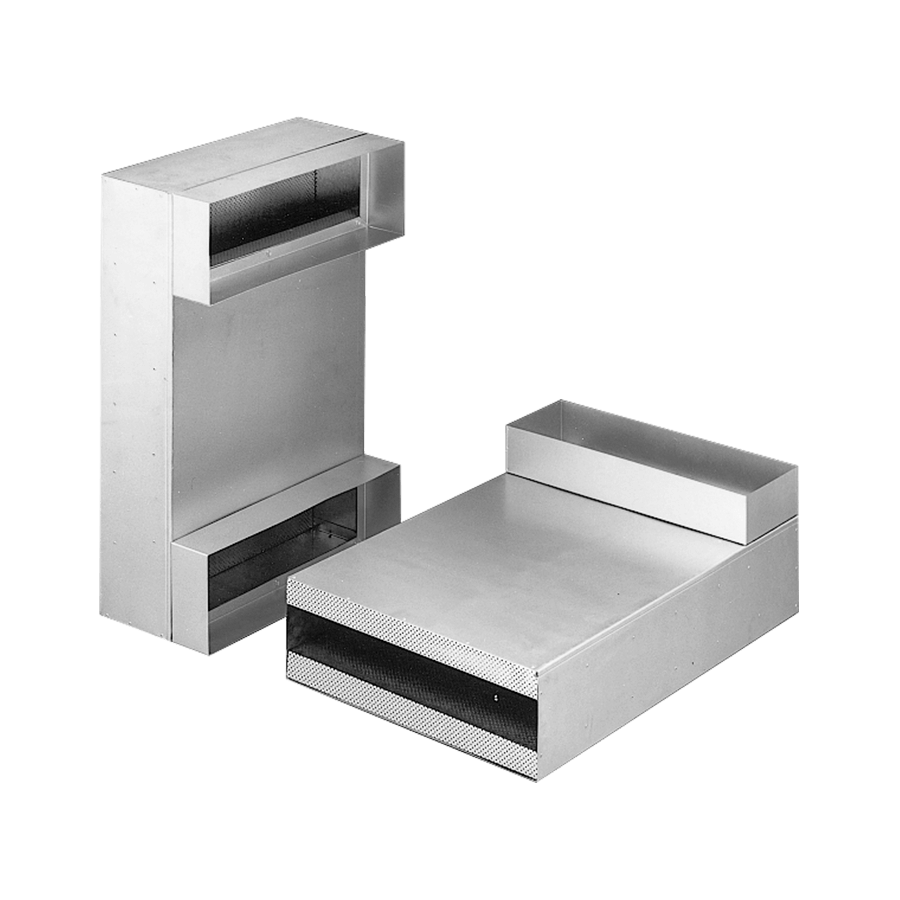

Cross Talk Attenuators
كاتمات صوت عبر الجدران
Installed in transfer air grilles to prevent sound transmission between adjacent rooms. Critical for office partitions, meeting rooms, healthcare facilities and hotel rooms.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description
Castle Cross-Talk Attenuators maintain sound privacy between adjacent rooms connected by common HVAC ductwork or transfer air openings. They prevent conversations and noise from traveling through shared duct runs, wall transfer grilles or ceiling void paths. Compact rectangular design fits within standard wall thicknesses and ceiling voids.
Speech Privacy
15-35 dB insertion loss — sufficient to block normal speech between adjacent rooms.
Compact Design
Fits within standard 200mm wall thickness — no special construction required.
Dual Function
Provides both acoustic attenuation and airflow transfer — replaces separate grille and silencer.
Fire Rated
Non-combustible mineral wool fill — maintains fire compartment integrity.
ISO 9001:2015 Certified
Quality management system certified by IGC, covering all stages from raw material to final delivery.
SMACNA & DW144 Compliant
Manufactured to the latest edition of SMACNA HVAC Duct Construction Standards and DW144.
Custom Sizes Available
Non-standard dimensions manufactured to project specifications with competitive lead times.
Approved by Leading Consultants
Accepted by Dar Al-Handasa, ECG, SYSTRA, Khatib & Alami and 25+ major engineering consultants.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Casing Material | Galvanized steel 0.8mm | mm |
| Acoustic Fill | Non-combustible mineral wool — 48 kg/m³ | kg/m³ |
| Facing | Perforated galvanized steel + glass tissue | — |
| Standard Sizes | 200×200 to 600×600mm | mm |
| Length | 300mm / 450mm / 600mm / 900mm | mm |
| Insertion Loss | 15-35 dB (frequency dependent) | dB |
| Pressure Drop | 5-30 Pa | Pa |
| Fire Rating | Non-combustible per BS 476 Part 4 | — |
| Mounting | In-wall / In-duct / Ceiling void | — |
| Compliance | SMACNA / BS 8233 / ASHRAE | — |
Applications
Fields of Application
Office-to-office privacy
Hotel room-to-room isolation
Hospital ward privacy
Conference room sound isolation
Classroom acoustic separation
Residential apartment walls
Quality Assurance
Tests & Certificates
ISO Certification
International Quality Certifications
ISO 9001:2015
ISO 14001:2015
OHSAS 18001
International Standards
SMACNA · DW144 · IGC · UL
SMACNA
DW144
IGC
UL
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
