Product Code: CEI-CTS / CTS-L / CTS-P / CTS-T
Cable Tray System
سلم الكابلات
Tray, ladder and trunk cable management systems for organizing and protecting electrical cables in buildings. Hot-dip galvanized, pre-galvanized or powder coated finishes. Full range of fittings.
Frame Material
Product Description

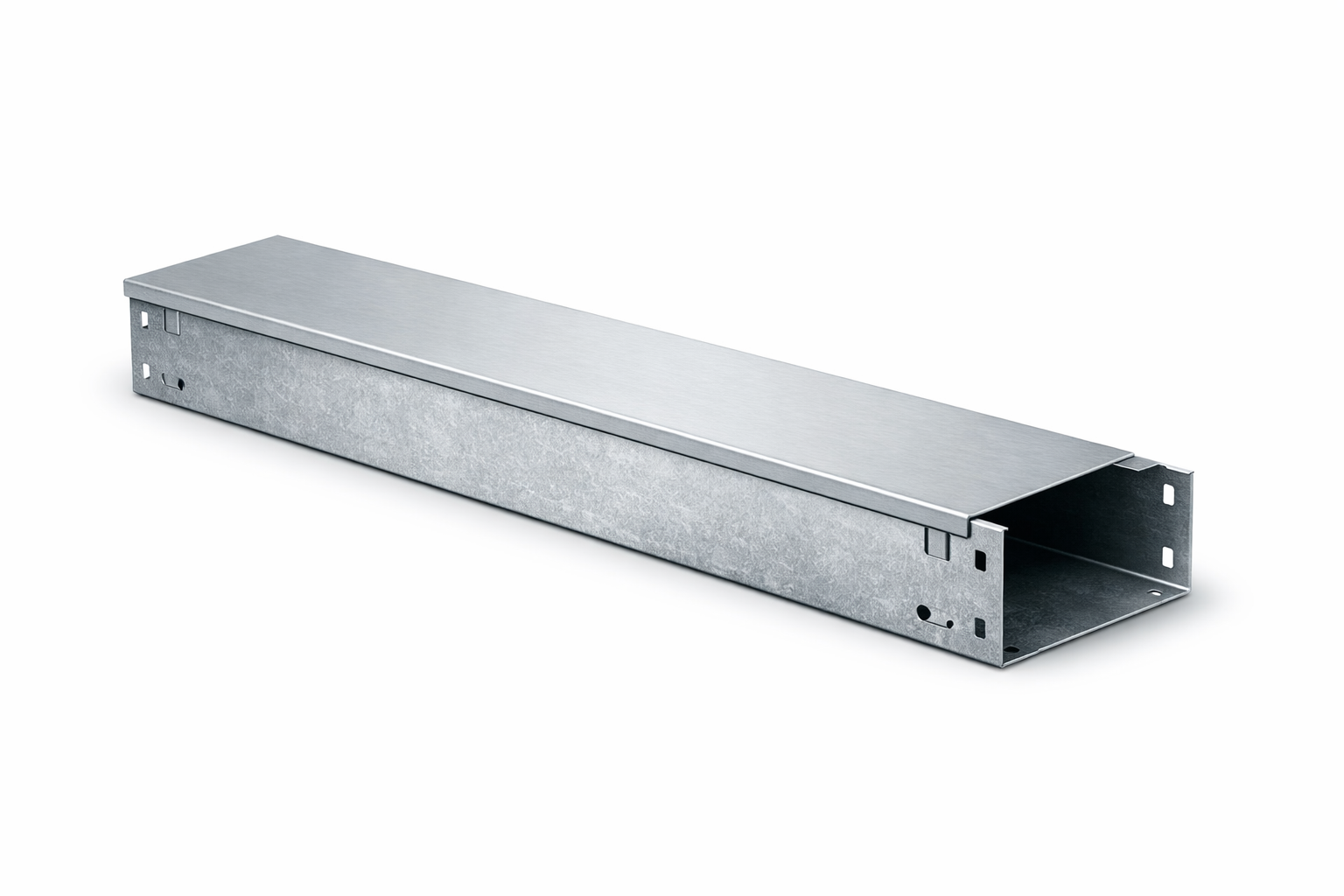

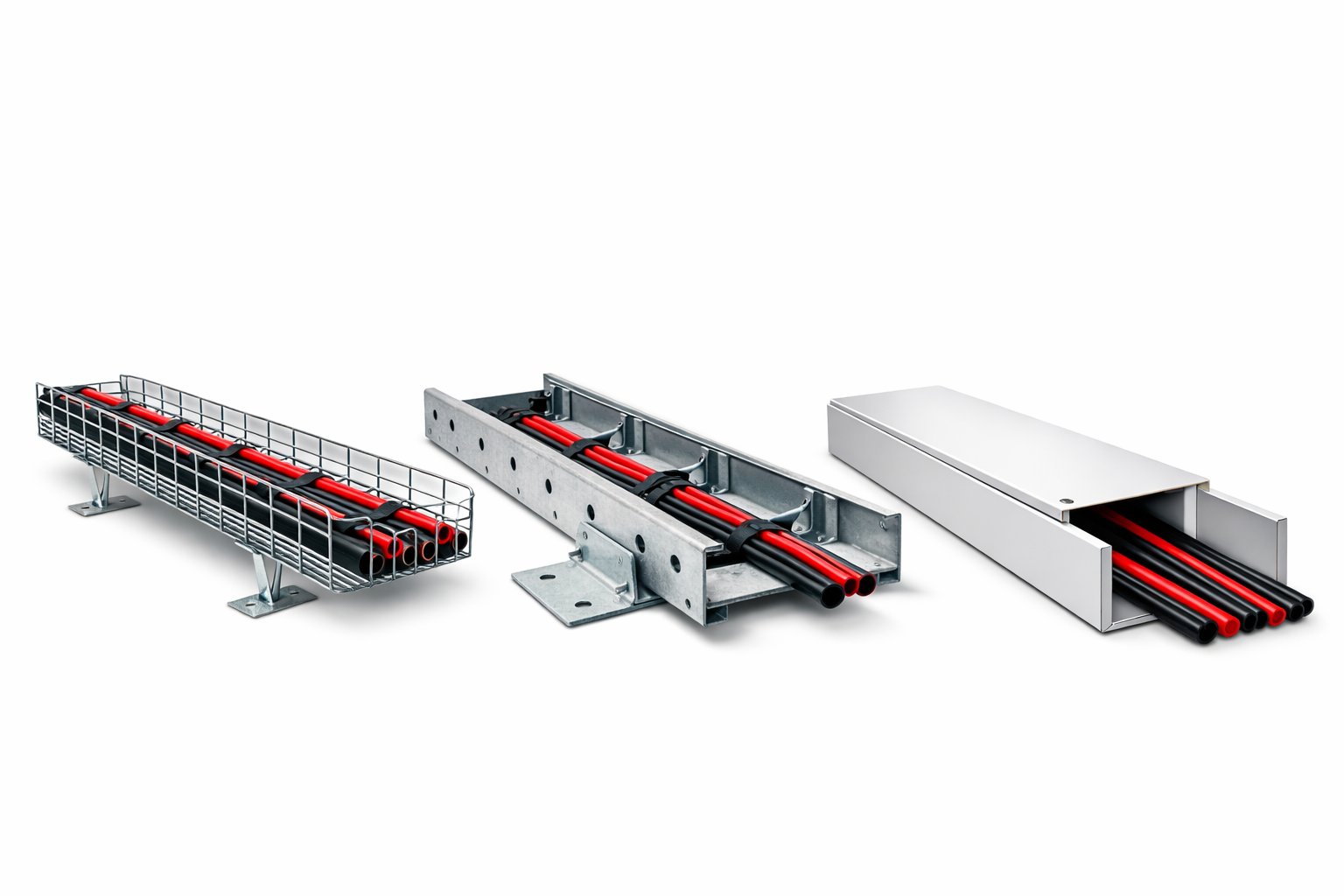

Castle Cable Tray Systems provide organized routing and support for electrical power, data and communication cables in commercial and industrial buildings. Available in Ladder type, Perforated tray, and Trunking configurations. Hot-dip galvanized or powder coated finish. Manufactured from pre-galvanized or stainless steel sheet with full range of fittings including bends, tees, crosses, reducers and supports.
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Material | Pre-galvanized steel / Hot-dip galvanized / Stainless steel 304/316 | — |
| Sheet Thickness | 1.0mm / 1.2mm / 1.5mm / 2.0mm | mm |
| Tray Widths | 50 / 100 / 150 / 200 / 300 / 400 / 500 / 600mm | mm |
| Side Rail Height | 25 / 50 / 75 / 100mm | mm |
| Standard Length | 3000mm per section | mm |
| Load Capacity | Up to 150 kg/m (depending on width and support span) | kg/m |
| Support Span | 1.5m / 2.0m / 2.5m / 3.0m | m |

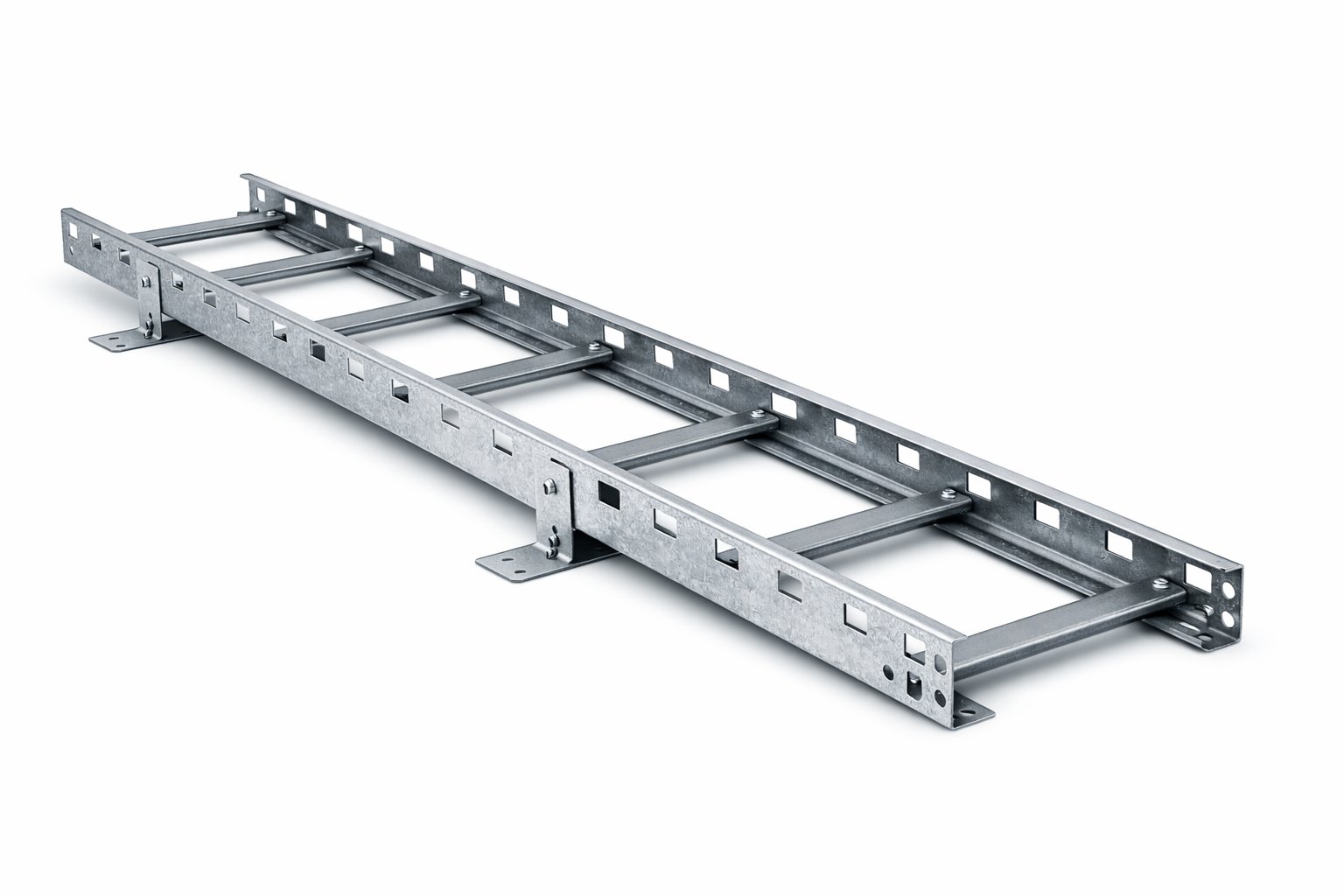

| Rung Spacing (Ladder) | 250mm / 300mm centres | mm |

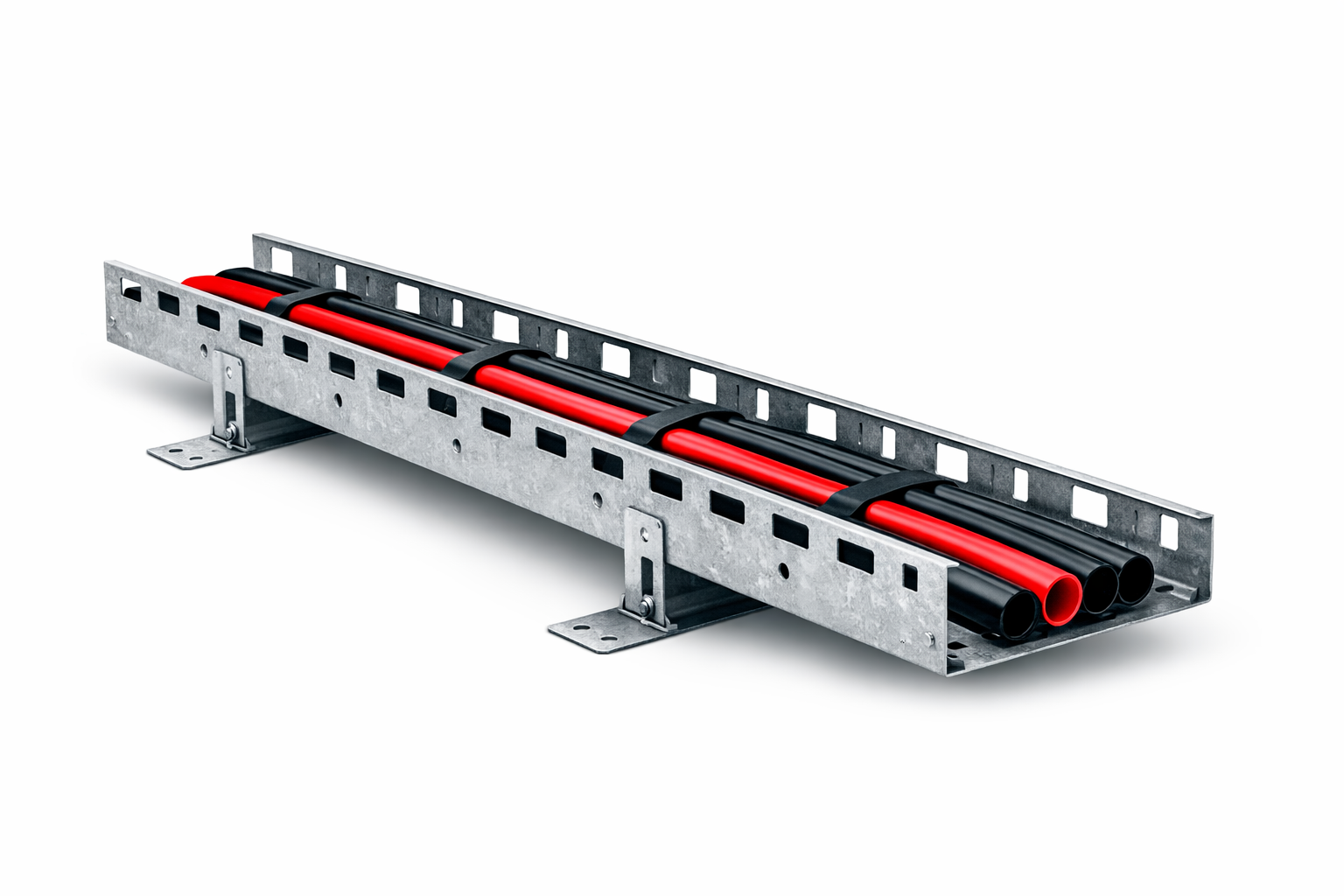

| Perforation (Perforated) | Oblong slots — 25×12mm | mm |
| Fittings | Bends, tees, crosses, reducers, risers, couplers | — |
| Finish | Pre-galvanized / Hot-dip galvanized / Powder coated / SS | — |
| Compliance | IEC 61537 / NEMA / Egyptian Electrical Code | — |
