Front View
Enlarge
Product Code: BJD / BJD-AB-20B

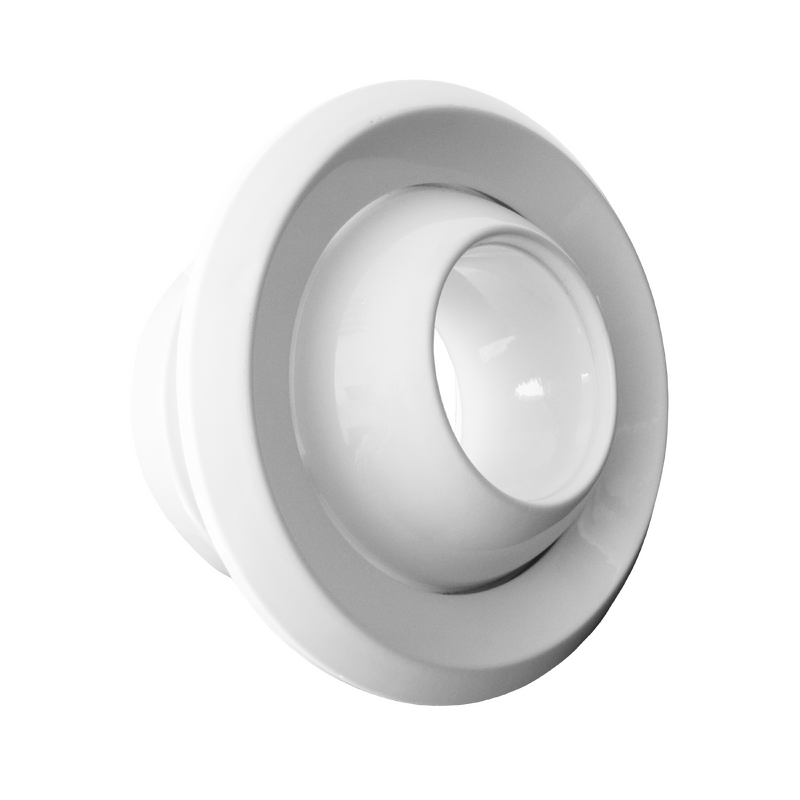

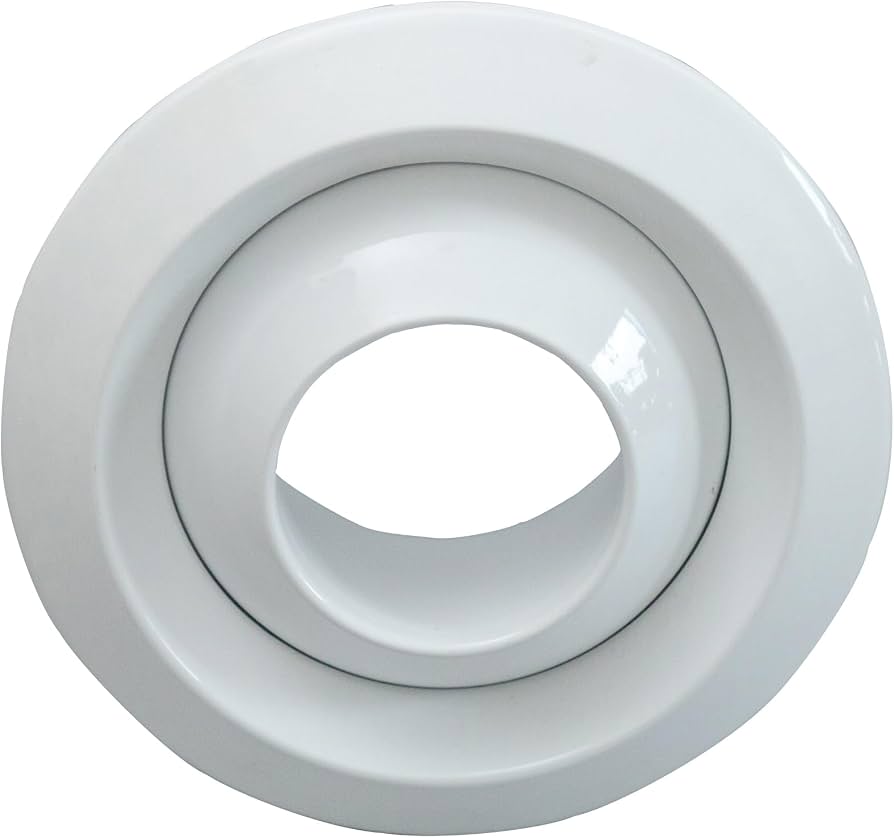

Ball Jet Diffuser
موزع كروي
BJD Series ball jet diffusers — aluminium eyeball-type nozzles for targeted long-throw cooling in malls, airports, auditoriums and high-load spaces. Sizes 150–400mm.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description
CASTLE produces Ball Jet Diffusers engineered to provide precise and forceful airflow across extended distances. These jet nozzles are primarily utilized within HVAC systems for targeted cooling purposes, particularly where air must travel considerable distances and conventional ceiling diffusers are not viable.
Full Directional Control
Eyeball-type ball joint allows full directional adjustment — positioned at any angle to direct airflow precisely to required zone.
1–4 Port Configurations
Models BJD-AB-20B available in 1P, 2P, 3P and 4P configurations for increased airflow in high-capacity applications.
Sizes 150–400mm Neck
Neck sizes from 150mm (Ø) to 400mm — face plate dimensions scale from 225×225mm to 2060×515mm (4-port, 400mm).
Plenum Box Available
Plenum chamber with circular, square or rectangular spigots for top or side entry — galvanized steel 0.7mm with 13mm acoustic liner.
Foam Gasket Sealing
Foam gasket installed around mounting frame to ensure air-tightness and prevent leakage at wall or ceiling interface.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Material | High quality aluminium construction | — |
| Mounting Plate | 1.2mm aluminium sheet with foam gasket | — |
| Neck Sizes | 150 / 200 / 250 / 315 / 350 / 400 mm Ø | — |
| Face Plate (1 port, Ø150) | 225 × 225 mm | mm |
| Face Plate (1 port, Ø400) | 515 × 515 mm | mm |
| Configurations | BJD-1E / 2E / 3E / 4E · BJD-AB-20B-1P to 4P | — |
| Plenum Casing | Galvanized steel 0.7mm | — |
| Acoustic Liner | 13mm thick | mm |
| Neck Velocity Range | 800–4000 FPM (documented per size) | FPM |
| Finish Options | RAL powder coating (specify RAL number) | — |
| Country of Origin | Egypt | — |
Applications
Fields of Application
Commercial & Industrial HVAC Projects
Quality Assurance
Tests & Certificates
ISO Certification
International Quality Certifications
ISO 9001:2015
ISO 14001:2015
OHSAS 18001
International Standards
SMACNA · DW144 · IGC · UL
SMACNA
DW144
IGC
UL
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
