Front View
Enlarge
Product Code: CEI-BD / BD-GI / BD-AL
Back Draft Dampers
صمامات منع الارتداد
Gravity-operated dampers preventing reverse airflow in exhaust and supply systems. Spring-loaded or counterbalanced blade design. Used in kitchen exhaust, bathroom ventilation and emergency generator outlets.
Frame Material
Quick Query?
WhatsApp Us →
ISO 9001:2015SMACNADW144
Description
Product Description

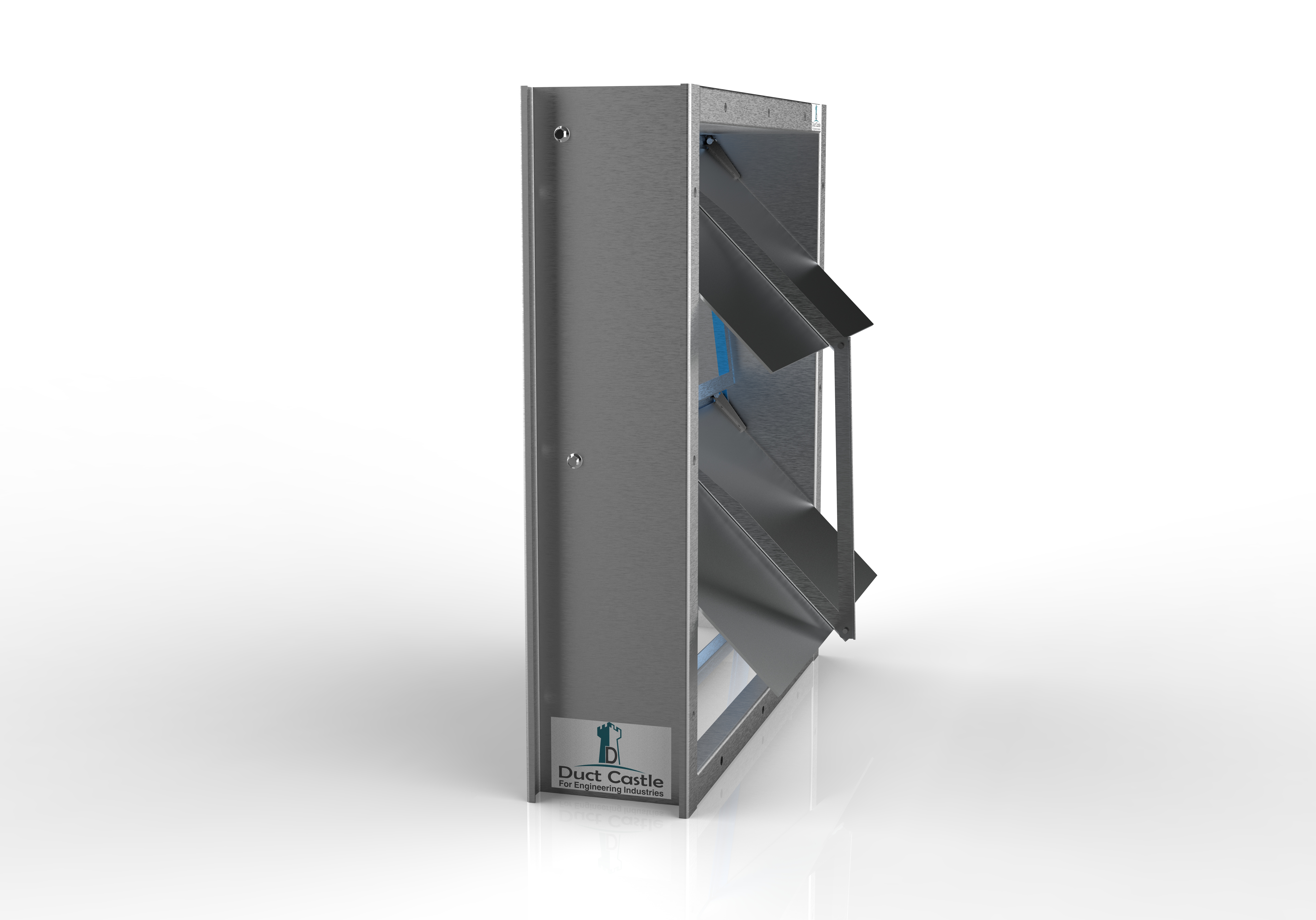

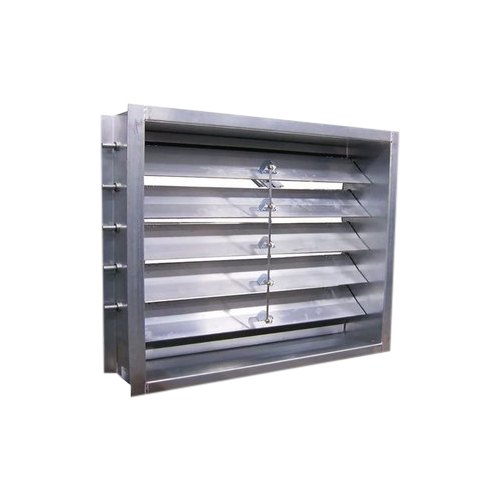

Castle Back Draft Dampers prevent reverse airflow in ventilation and exhaust systems. The blades open to allow airflow in one direction and automatically close by gravity when the fan stops — preventing conditioned air from escaping and outdoor air from entering. Available in single-blade and multi-blade configurations for round and rectangular ducts.
Prevents Backdraft
Gravity-operated blades seal tight when fan stops — no outdoor air infiltration or conditioned air loss.
Ultra-Light Blades
Thin aluminium blades open with minimal air pressure — negligible resistance to normal airflow.
Rubber Sealed
Neoprene gasket provides airtight seal in closed position — no air leakage.
Horizontal & Vertical
Spring-assisted option available for horizontal duct installation where gravity alone is insufficient.
ISO 9001:2015 Certified
Quality management system certified by IGC, covering all stages from raw material to final delivery.
SMACNA & DW144 Compliant
Manufactured to the latest edition of SMACNA HVAC Duct Construction Standards and DW144.
Custom Sizes Available
Non-standard dimensions manufactured to project specifications with competitive lead times.
Approved by Leading Consultants
Accepted by Dar Al-Handasa, ECG, SYSTRA, Khatib & Alami and 25+ major engineering consultants.
Specifications
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frame Material | Galvanized steel 1.0mm / Aluminium 1.2mm | — |
| Blade Material | Aluminium sheet — lightweight for gravity operation | — |
| Blade Seal | Rubber or neoprene gasket — airtight when closed | — |
| Operation | Gravity-operated — opens with airflow pressure | — |
| Spring Option | Spring-loaded blades for horizontal mounting | — |
| Shapes | Rectangular / Round | — |
| Rectangular Sizes | 150×150 to 1200×600mm | mm |
| Round Sizes | Ø100 to Ø630mm | mm |
| Mounting | Duct inline / Wall / Ceiling | — |
| Opening Pressure | 2-5 Pa (adjustable with counterweight) | Pa |
| Finish | Mill finish / Powder coated | — |
| Compliance | SMACNA / ASHRAE | — |
Applications
Fields of Application
Exhaust fan outlets
Kitchen range hood ducts
Bathroom exhaust
Dryer vent termination
Generator room exhaust
Fresh air intake protection
Quality Assurance
Tests & Certificates
Duct Test
Rigorous leakage and pressure testing to SMACNA and DW144 standards.
Duct Test 01
Duct Test 02
Duct Test 03
Air Tests
Air velocity and distribution testing.
Air Test 01
Air Test 02
